Sentry Pool Heater – Liquid Propane

On Demand Pool Heaters with 98% Thermal Efficiency

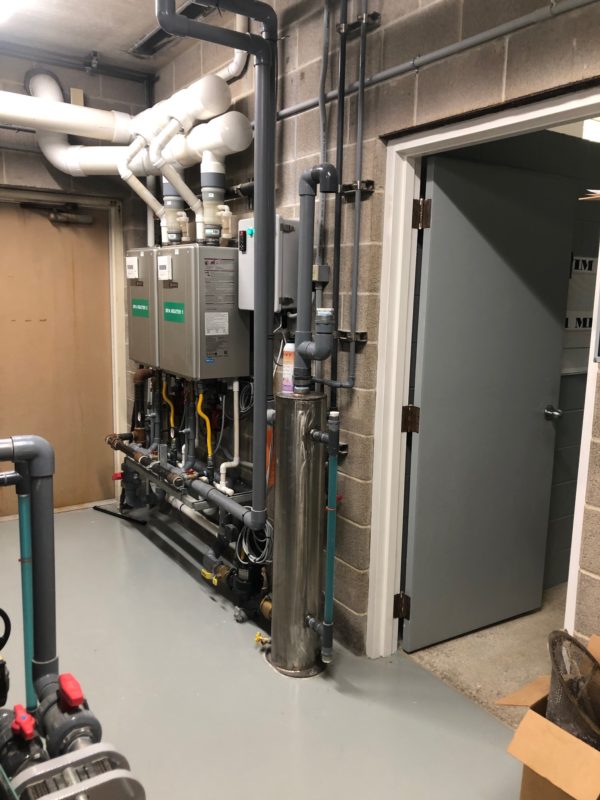

The Sentry Pool Heater is a modular designed, closed-loop, 98% efficient pool heating system.  This system can fit almost any mechanical room configuration.  The burner modules are installed using multiple 200,000 BTU rated units, with each parallel piped into the primary food grade, non-toxic, glycerin loop supplying energy to the heat exchanger.  This patented design puts the BTU’s exactly where they are needed without exposing the system to any pool water.  The burner units are designed to vent through the wall directly to outdoors though a double wall PVC pipe which takes in combustion air for the burner thought the outer layer.

  • Save energy due to true 98% efficiency
  • Saves space allowing for smaller mechanical rooms
  • Lower operation cost as it only fires what is needed (18,000 BTU min)
  • Reduces Downtime if one burner is not working others will still operate
  • Multiple Pools – you can heat multiple pools with different set temperatures with one system
  • No thermal shock on burners due to high altitude
  • Flexible Installation Options  wall hung or floor mount design, indoor or outdoor installation
  • Rapid Filter Backwash as it is not interrupted and does not need to cool down
  • BAS Compatible controller has build in BACNET for smart control
  • Increase life expediency longest lasting heater available with best warranty



New call-to-action New call-to-action



  • 10 year limited commercial warranty
  • Dual high grade stainless steel heat exchanger
  • Approved for common venting for up to six units allowing for 1.2 million btuh
  • Submerged heat exchanger for installation within surge pits
  • Optional flat plate titanium heat exchangers for installation without surge pits
  • Sealed combustion with dedicated combustion air intake and exhaust
  • Power requirements two 20 AMP GFCI circuits, 110 volts, single phase power
Heating Capacity
(MBH)
# of Heaters Water Flow Rate
(gpm)
Plumbing Header Size
(inches)
Vent In/Out Size
(inches)
Gas Size
(inches)
Length
(inches)
Width
(inches)
Height
(inches)
Weight
(pounds)
# of heat X Smart Part Number
200 1 10 1″ 2″ ¾” 38″ 16″ 80″ 181lbs 1 SPH-200-LP
400 2 35 2″ 6″ 1 ½” 60″ 19″ 91″ 287lbs 1  SPH-400-LP
600 3 35 2″ 6″ 1 ½” 77″ 19″ 91″ 368lbs 1  SPH-600-LP
800 4 35 2″ 6″ 1 ½” 97″ 19″ 91″ 499lbs 2  SPH-800-LP
1200 6 35 2″ 8″ 1 ½” 135″ 19″ 91″ 694lbs 2 SPH-1200-LP
1600 8 35 2″ 8″ 1 1/2″ 178″ 19″ 99″ 949lbs 3 SPH-1600-LP
  • One (1) glycerin tank per model
  •  Heat exchanger and glycerin assembly spec sheets are available for download in the documents and CAD file section
Fusion 360

We store all of our interactive CAD files in Fusion 360 where you can download most file formats you might need.

Other Formats
